SF100 XX

SF100 XX
SF100 XX - Image 2

SF100 XX

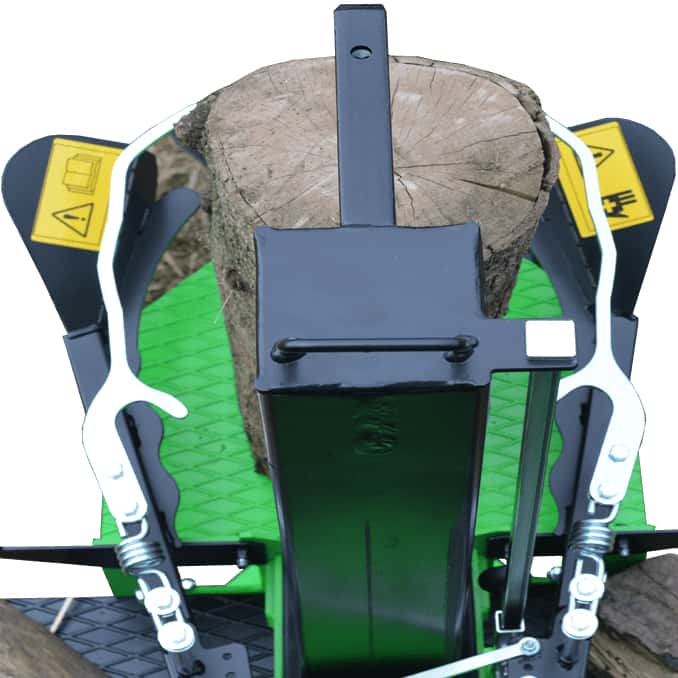

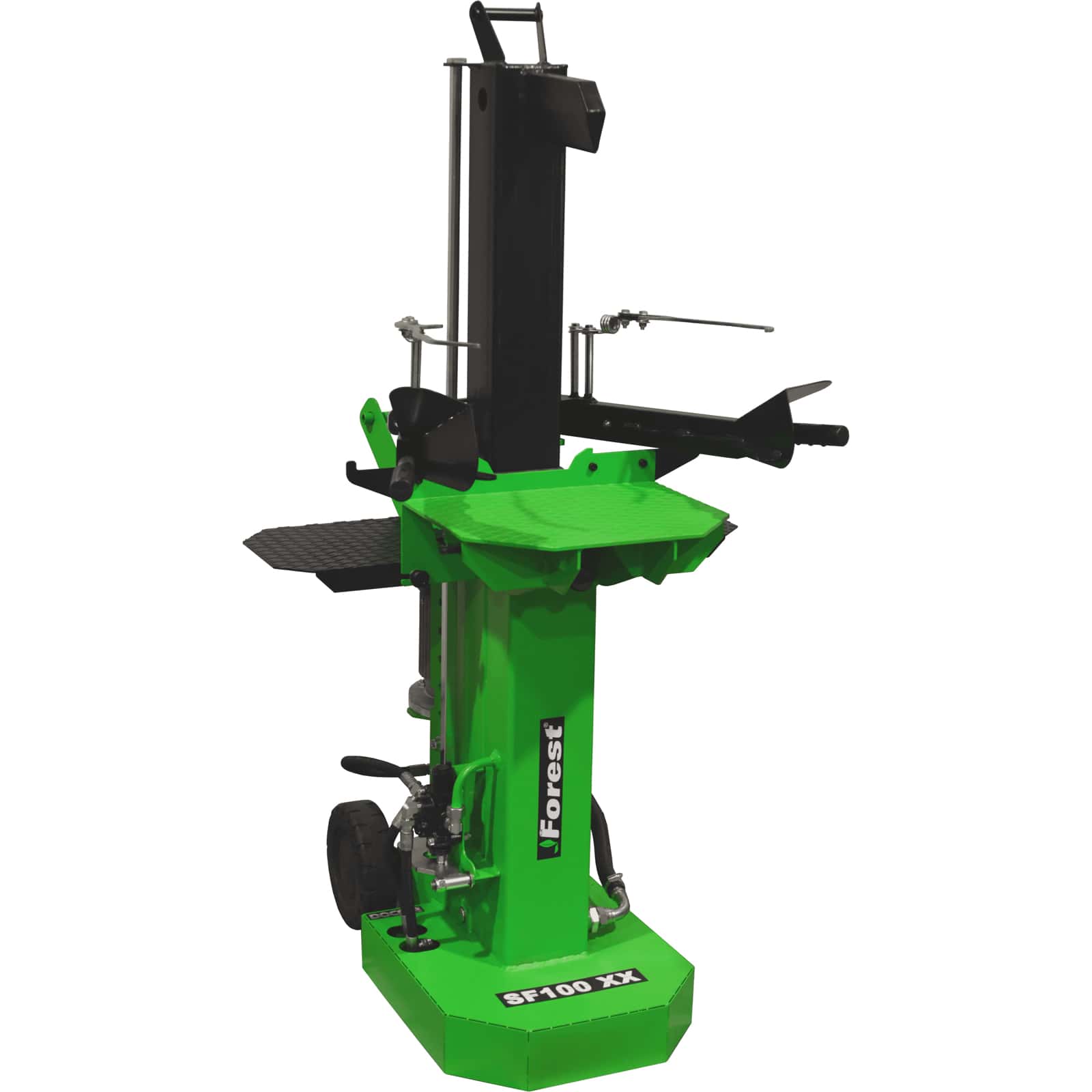

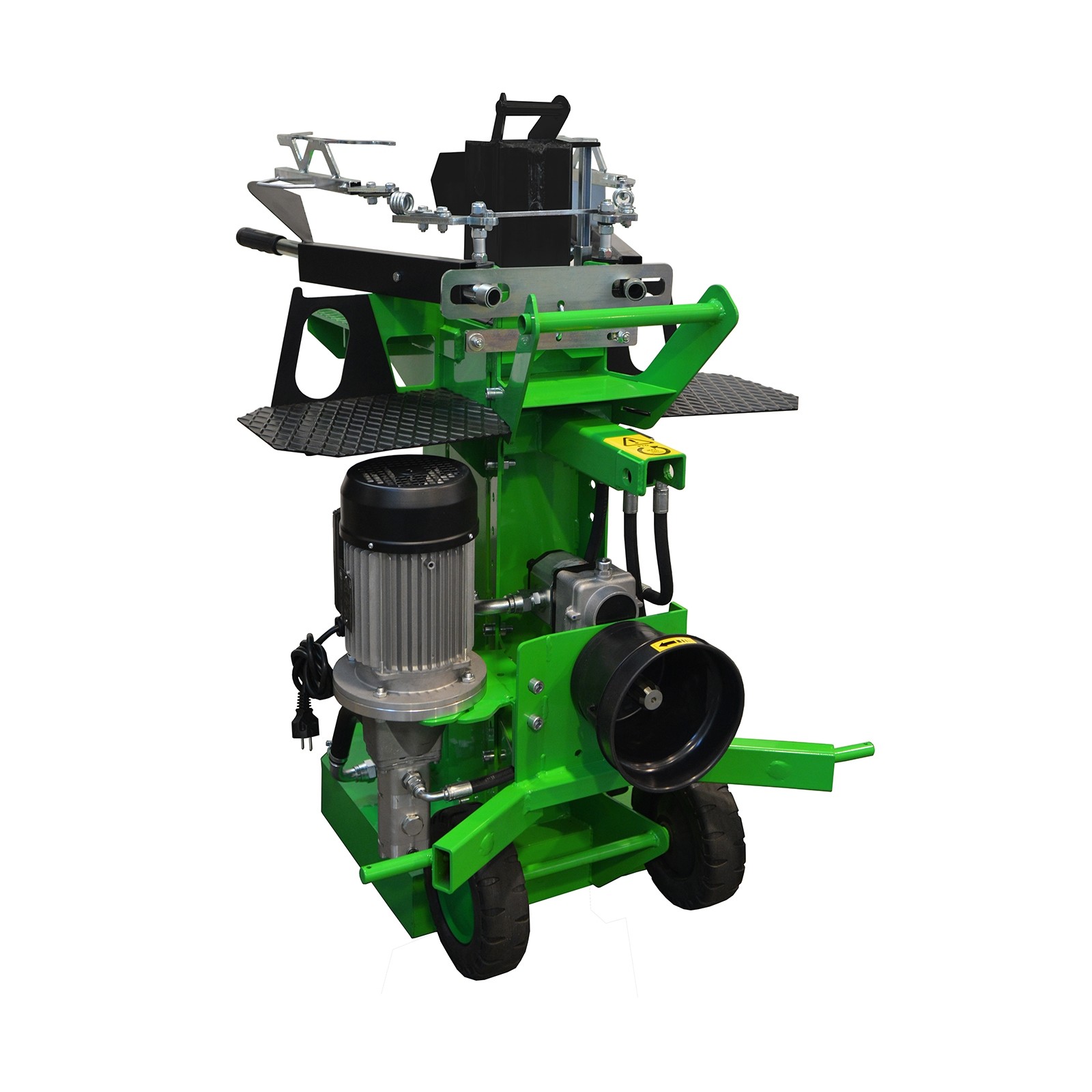

The Forest SF100 XX log-cutter model, produced in all versions, represents the professional choice of vertical wood splitters in traction. It is made in all versions and is the most powerful woodcutter in the category. The machine is completed by the patented system to lock the trunk comfortably and safely. EN609-1-2017.

Main features of the SF100 XX (extreme force):
• Cylinder stroke: 500 mm;
• Cutting height: 545 mm;
• Amount of oil: 13 lt;

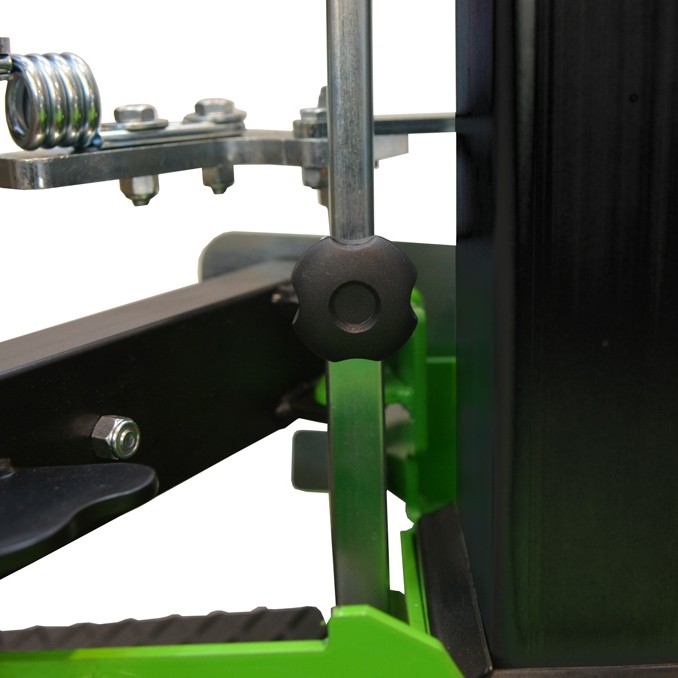

• Column stroke: adjustable;
• Weight: 154 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: ,

Description

CODE
 VERSION
 TECHNICAL DATA
 TONS
 MEASURES

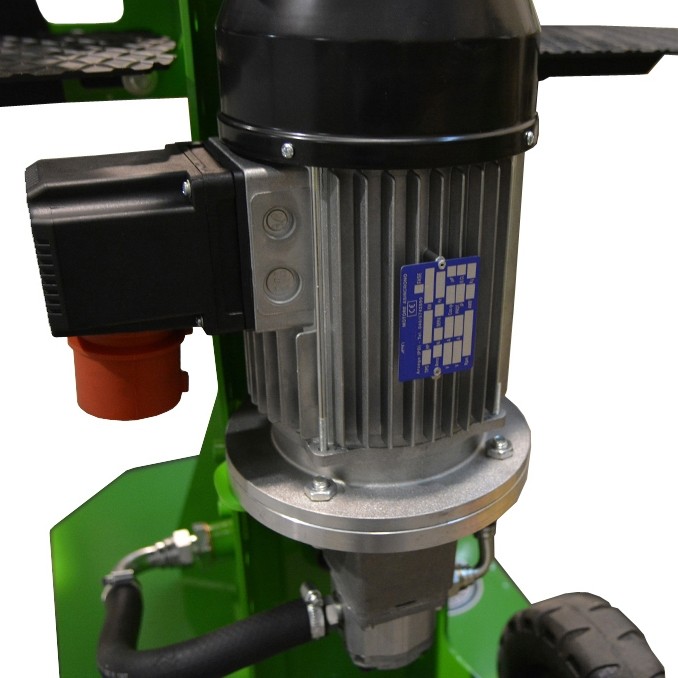

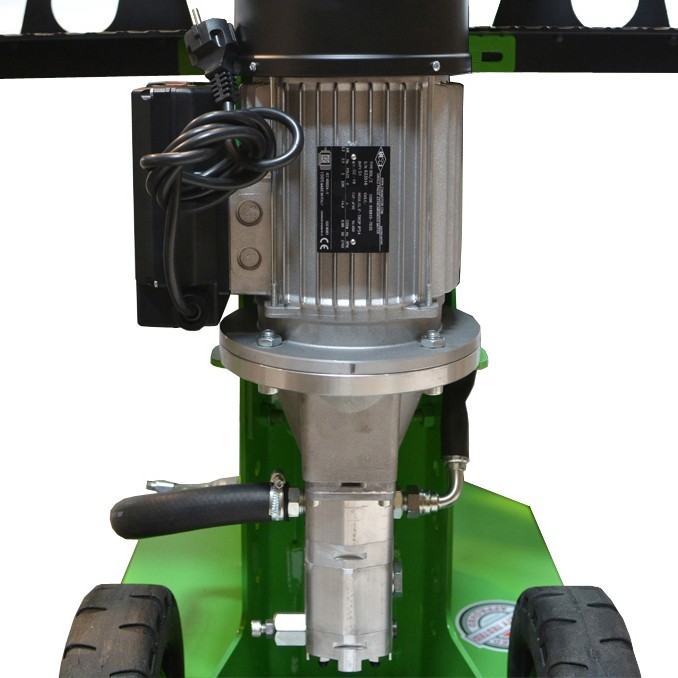

920023 SF100 220 XX EL. HP3 (2,2 kW) – 220 V – PS 8,15 74x66x114 cm
920024 SF100 380 XX EL. HP3 (2,2 kW) – 380 V – PS 8,15 74x66x114 cm
920025 SF100 380/4 XX EL. HP4 (3,0 kW) – 380 V – PS 8,15 74x66x114 cm
920026 SF100 RAPID 220 XX EL. HP3 (2,2 kW) – 220 V – DS 8,15 74x66x114 cm
920027 SF100 RAPID 380 XX EL. HP3 (2,2 kW) – 380 V – DS 8,15 74x66x114 cm
920028 SF100 RAPID 380/4 XX EL. HP4 (3,0 kW) – 380 V – DS 8,15 74x66x114 cm

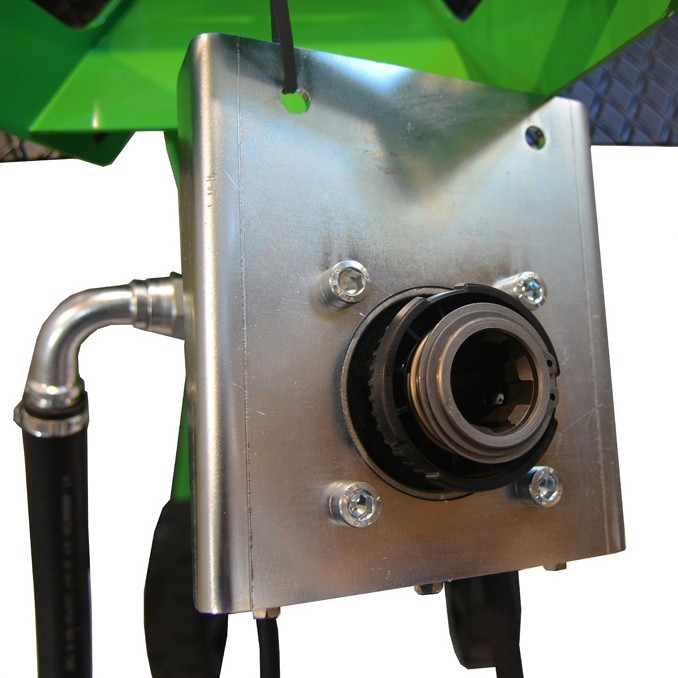

920029 SF100 PTO F XX PTO FM – PS 8,15 74x66x114 cm
920030 SF100 PTO XX PTO MS – 3P – PS 8,15 84x72x114 cm
920031 SF100 220+PTO XX EL. HP3 – 220 V – PS – PTO MS – 3P 8,15 84x72x114 cm
920032 SF100 380+PTO XX EL. HP3 – 380 V – PS – PTO MS – 3P 8,15 84x72x114 cm
920033 SF100 380/4+PTO XX EL. HP4 – 380 V – PS – PTO MS – 3P 8,15 84x72x114 cm
920034 SF100 RAPID 220+PTO XX EL. HP3 – 220 V – DP – PTO MS – 3P 8,15 84x72x114 cm
920035 SF100 RAPID 380+PTO XX EL. HP3 – 380 V – DS – PTO MS – 3P 8,15 84x72x114 cm
920036 SF100 RAPID 380/4+PTO XX EL. HP4 – 380 V – DP – PTO MS – 3P 8,15 84x72x114 cm

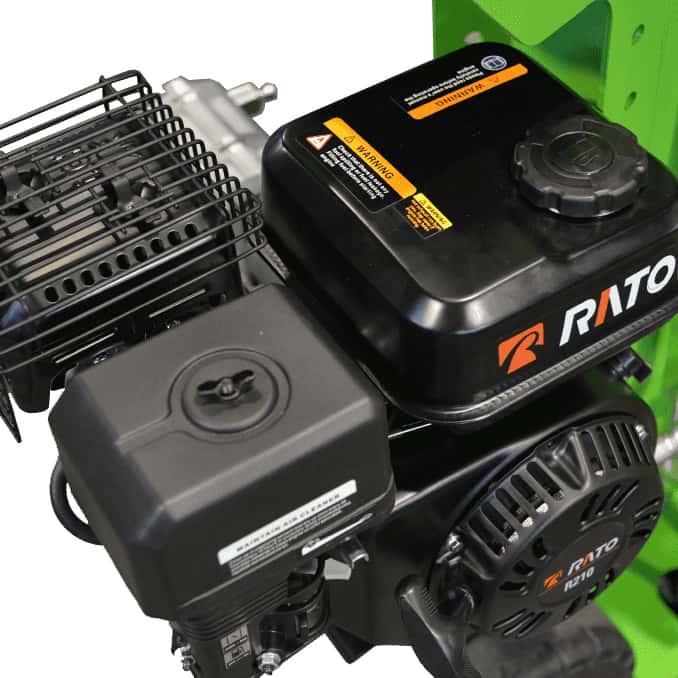

920037 SF100 BENZ RATO XX SC. RATO HP6,7 – 212 cc PS 8,15 84x66x114 cm
920038 SF100 RAPID BENZ RATO XX SC. RATO HP6,7 – 212 cc DP 8,15 84x66x114 cm



LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE ATTACK, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY
