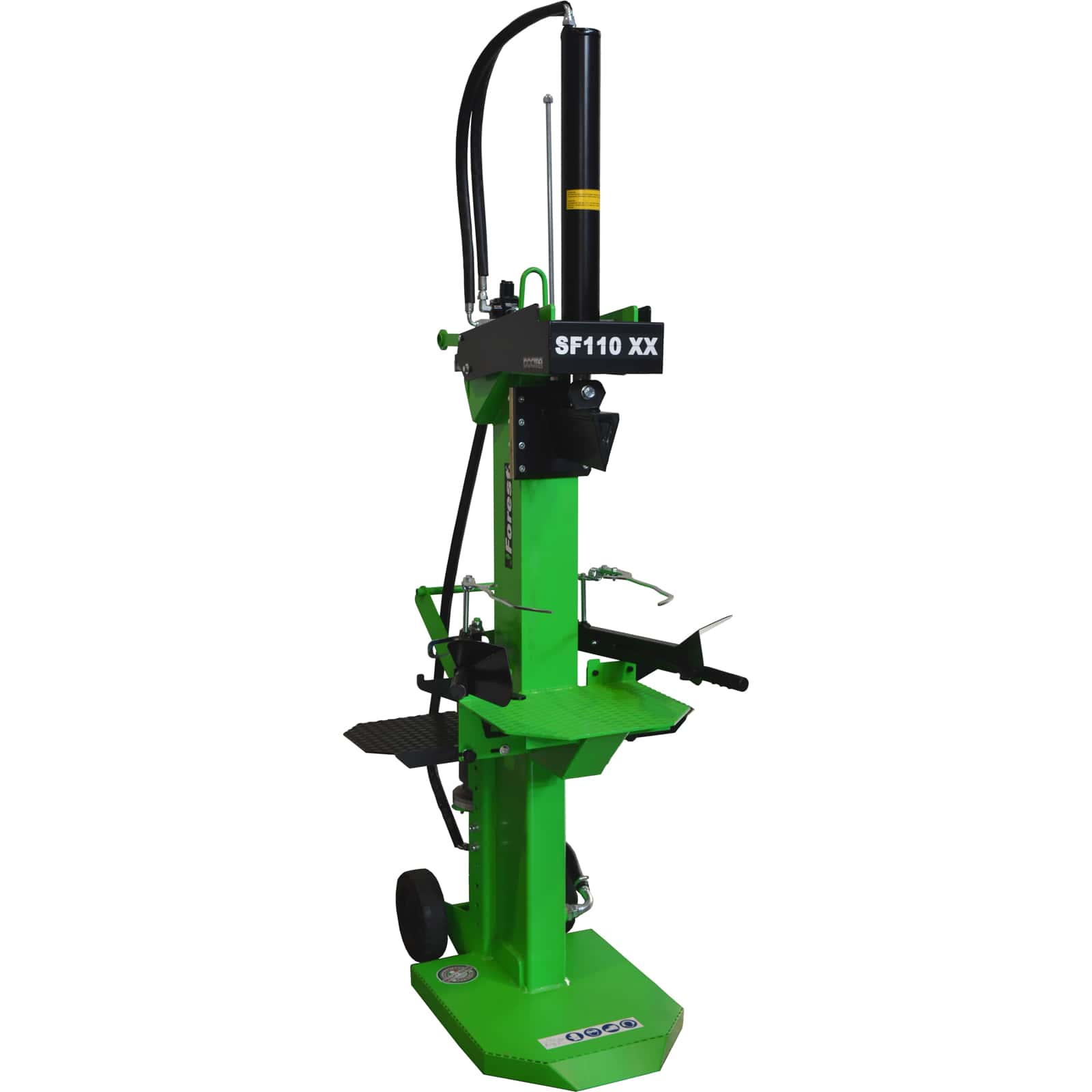

SF110 XX

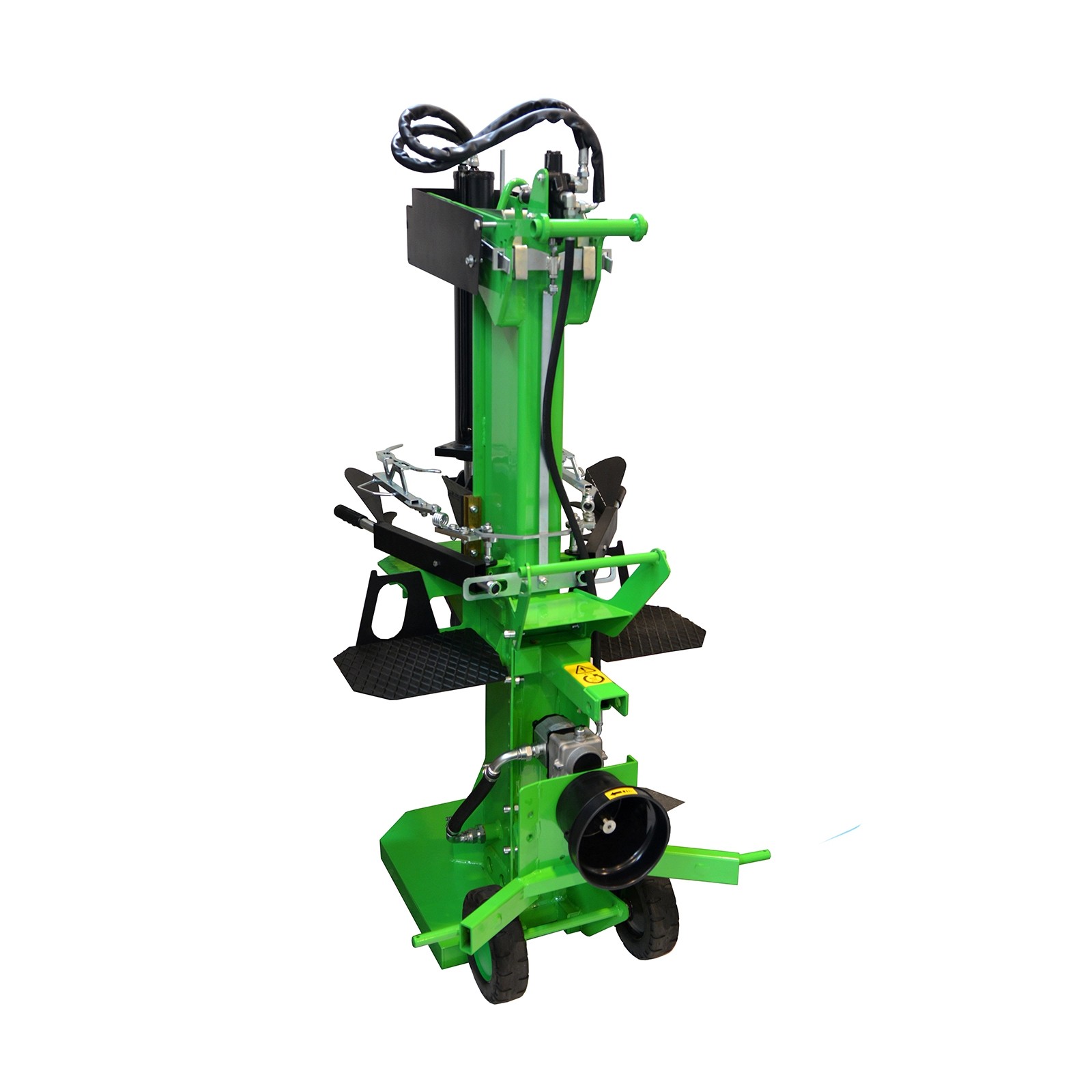

The Forest SF110 XX log-splitter model with fixed support surface, produced in all versions, is the choice of tradition, very little maintenance for a very reliable and professional instrument. EN609-1-2017.

Main features of the SF110 XX (extreme force):
• Cylinder stroke: 500 mm;
• Cutting height: 545 mm;
• Quantity of oil: 18 lt;
• Column stroke: adjustable;
• Weight: 210 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: Log-splitters, Forest

Description

Description

CODE	VERSION	TECHNICAL DATA	TONS	MEASURES

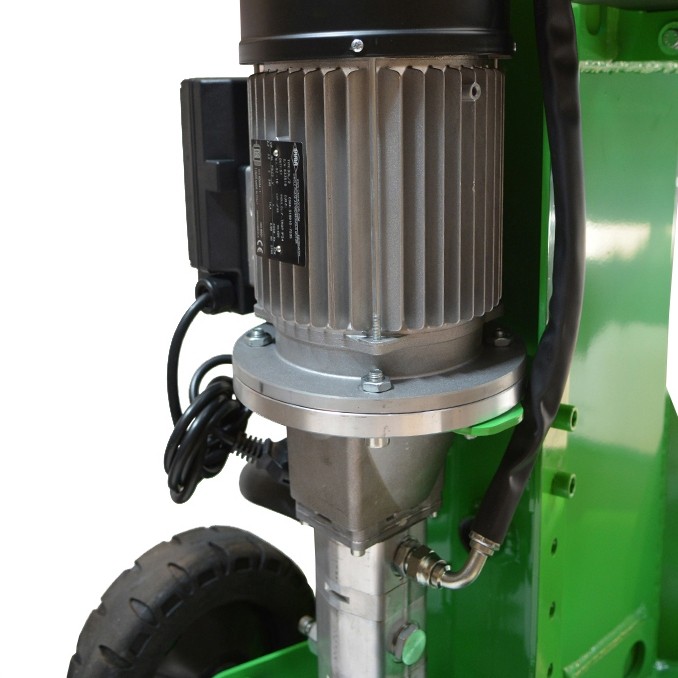

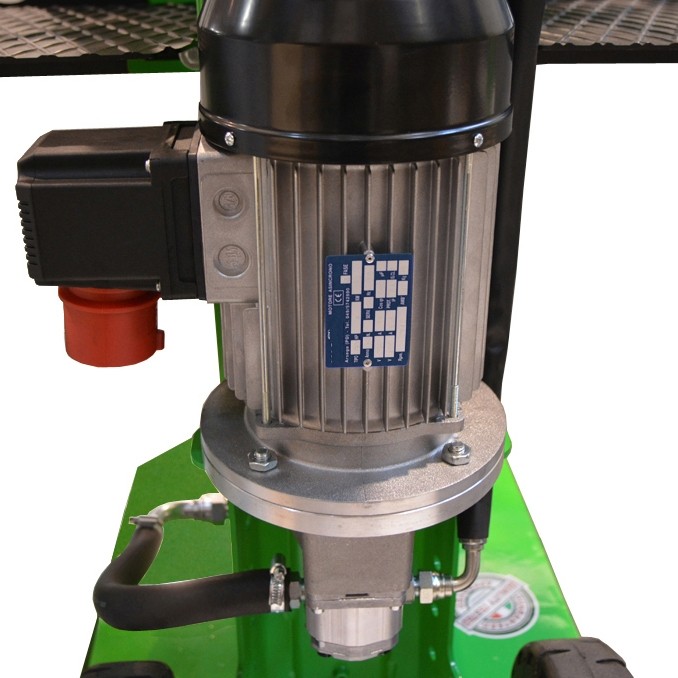

930050	SF110 220 XX	EL. HP3 (2,2 kW) – 220 V – PS	8,15	90x66x222 cm
930051	SF110 380 XX	EL. HP3 (2,2 kW) – 380 V – PS	8,15	90x66x222 cm
930052	SF110 380/4 XX	EL. HP4 (3,0 kW) – 380 V – PS	8,15	90x66x222 cm
930053	SF110 RAPID 220 XX	EL. HP3 (2,2 kW) – 220 V – DS	8,15	90x66x222 cm
930054	SF110 RAPID 380 XX	EL. HP3 (2,2 kW) – 380 V – DS	8,15	90x66x222 cm
930055	SF110 RAPID 380/4 XX	EL. HP4 (3,0 kW) – 380 V – DS	8,15	90x66x222 cm

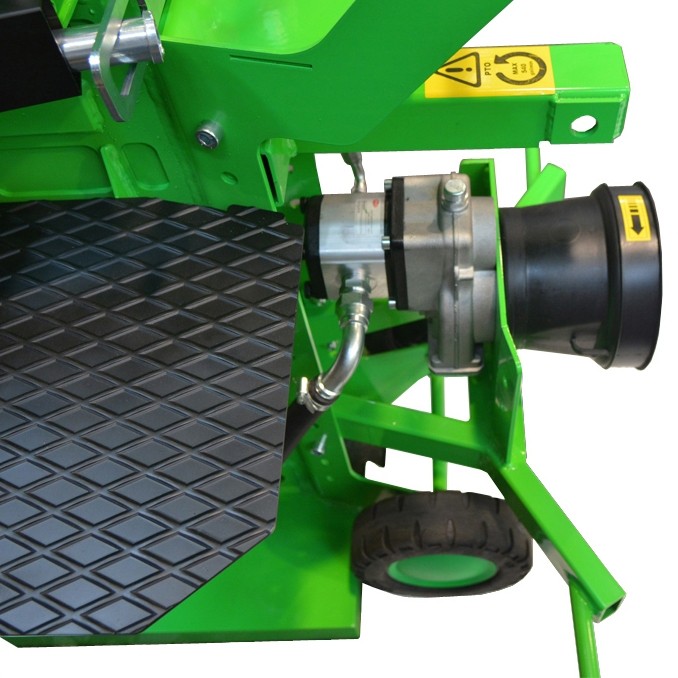

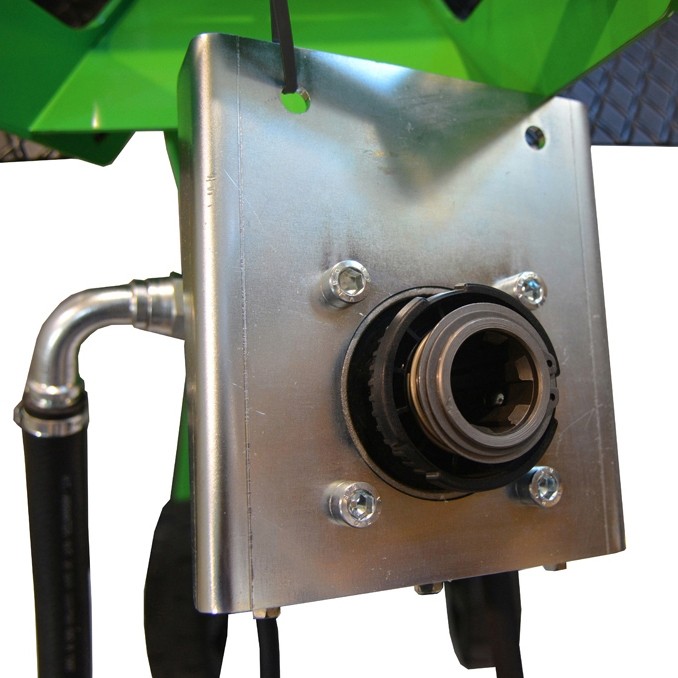

930056	SF110 PTO F XX	PTO FM – 3P – PS	8,15	94x72x222 cm
930057	SF110 PTO XX	PTO MS – 3P – PS	8,15	98x72x222 cm
930058	SF110 220+PTO XX	EL. HP3 – 220 V – PS – PTO MS – 3P	8,15	98x72x222 cm
930059	SF110 380+PTO XX	EL. HP3 – 380 V – PS – PTO MS – 3P	8,15	98x72x222 cm
930060	SF110 380/4+PTO XX	EL. HP4 – 380 V – PS – PTO MS – 3P	8,15	98x72x222 cm
930061	SF110 RAPID 220+PTO XX	EL. HP3 – 220 V – DP – PTO MS – 3P	8,15	98x72x222 cm
930062	SF110 RAPID 380+PTO XX	EL. HP3 – 380 V – DS – PTO MS – 3P	8,15	98x72x222 cm
930063	SF110 RAPID 380/4+PTO XX	EL. HP4 – 380 V – DP – PTO MS – 3P	8,15	98x72x222 cm

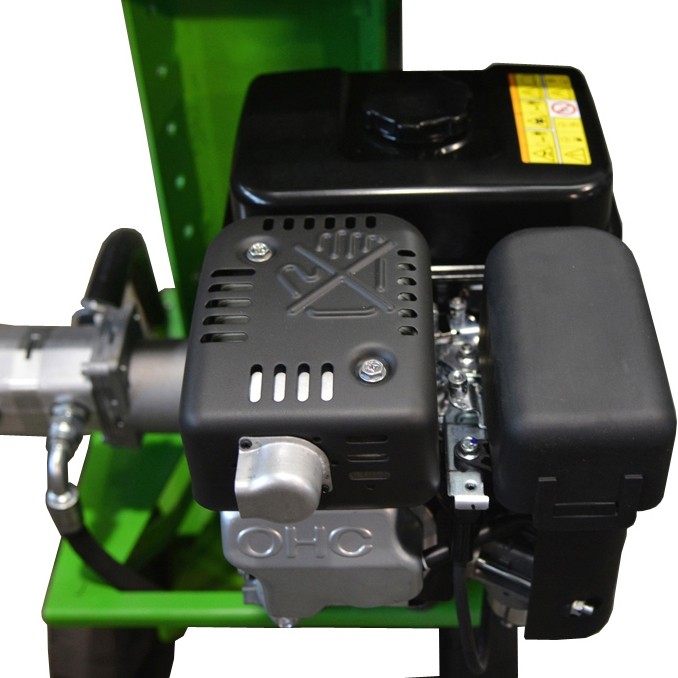

930064	SF110 RAPID BENZ RATO XX	SC. RATO HP6,7 – 212 cc – DP	8,15	98x70x222 cm

LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE CONNECTION, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY
