SF130 XX

SF130 XX

SF130 XX

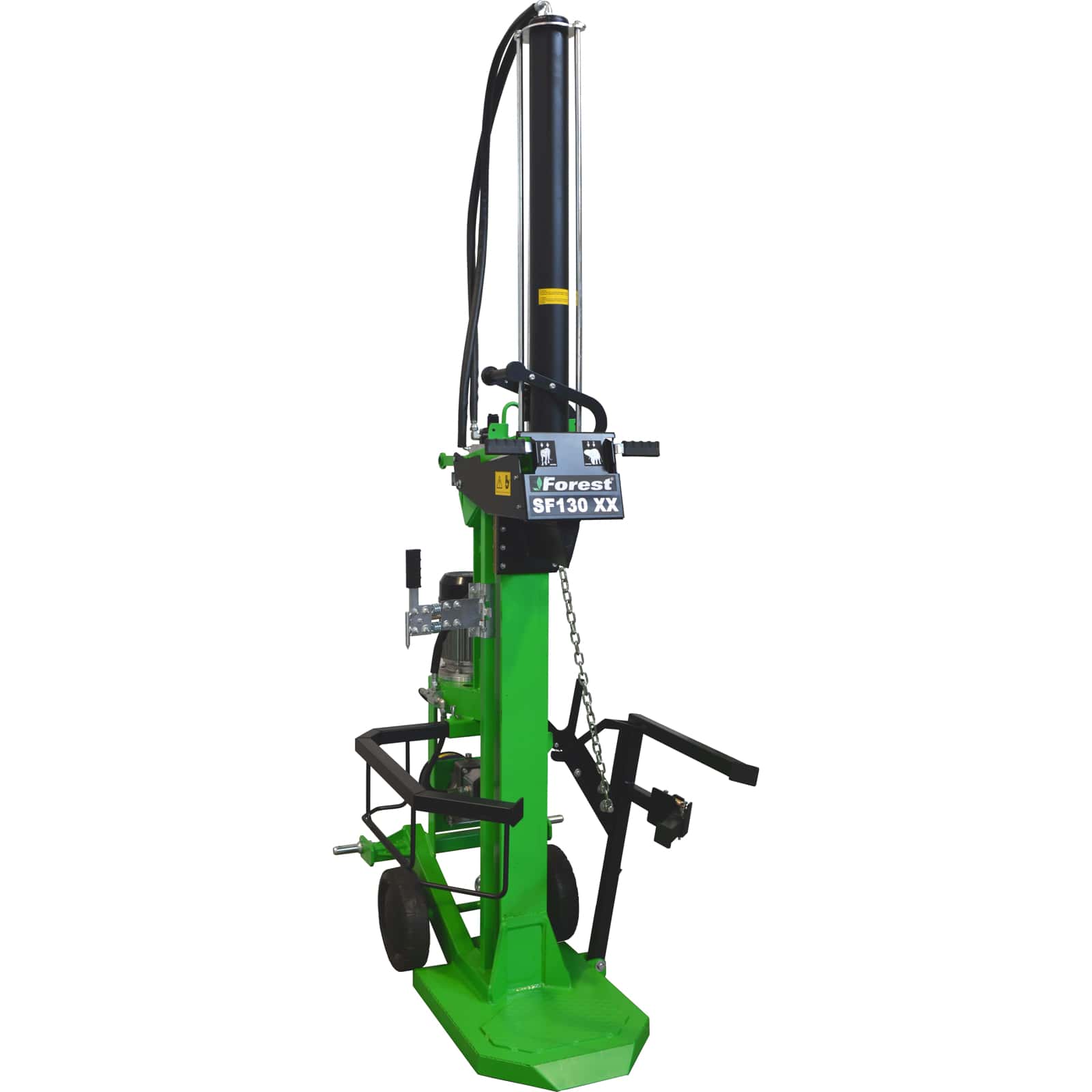

The Forest SF130 XX log-cutter model, designed to work on the ground, is a highly professional choice. The slit power, the stroke of the 1 metre cylinder and the cutting space of more than 1200 mm make it the best solution for those who wants the maximum of their equipment. Complete the machine with the patented system to lock and unlock the cylinder quickly and easily. EN609-1-2017.

Main features of SF130 XX (vertical):
• Cylinder stroke: 1000 mm;
• Cutting height: 1210 mm;
• Quantity of oil: 21 lt;
• Column stroke: adjustable;
• Weight: 300 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: ,

Description

CODE
 VERSION
 TECHNICAL DATA
 TONS
 MEASURES
940030 SF130 RAPID 220 XX EL. HP3 (2,2 kW) – 220 V – DP – 3P 13,00 110x95x265 cm
940031 SF130 380 XX EL. HP5,5 (4,1 kW)– 380 V – PS – 3P 13,00 110x95x265 cm
940032 SF130 PTO F XX PTO FM – 3P – PS 13,00 110x95x265 cm
940033 SF130 PTO XX PTO MS – 3P – PS 13,00 110x95x265 cm
940034 SF130 RAPID 220+PTO XX EL. HP3 – 220 V – DP+PTO MS – 3P 13,00 110x95x265 cm
940035 SF130 380+PTO XX EL. HP5,5– 380 V – PS+PTO MS – 3P 13,00 110x95x265 cm
940046 SF130 RAPID BENZ RATO XX SC. RATO HP9 – 301 cc – DP 13,00 110x95x265 cm
940037 SF130 ST XX HYDRAULIC TUBES 1,5 m 13,00 * 110x95x265 cm



LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE CONNECTION, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY

* MAXIMUM REACHABLE PRESSURE
