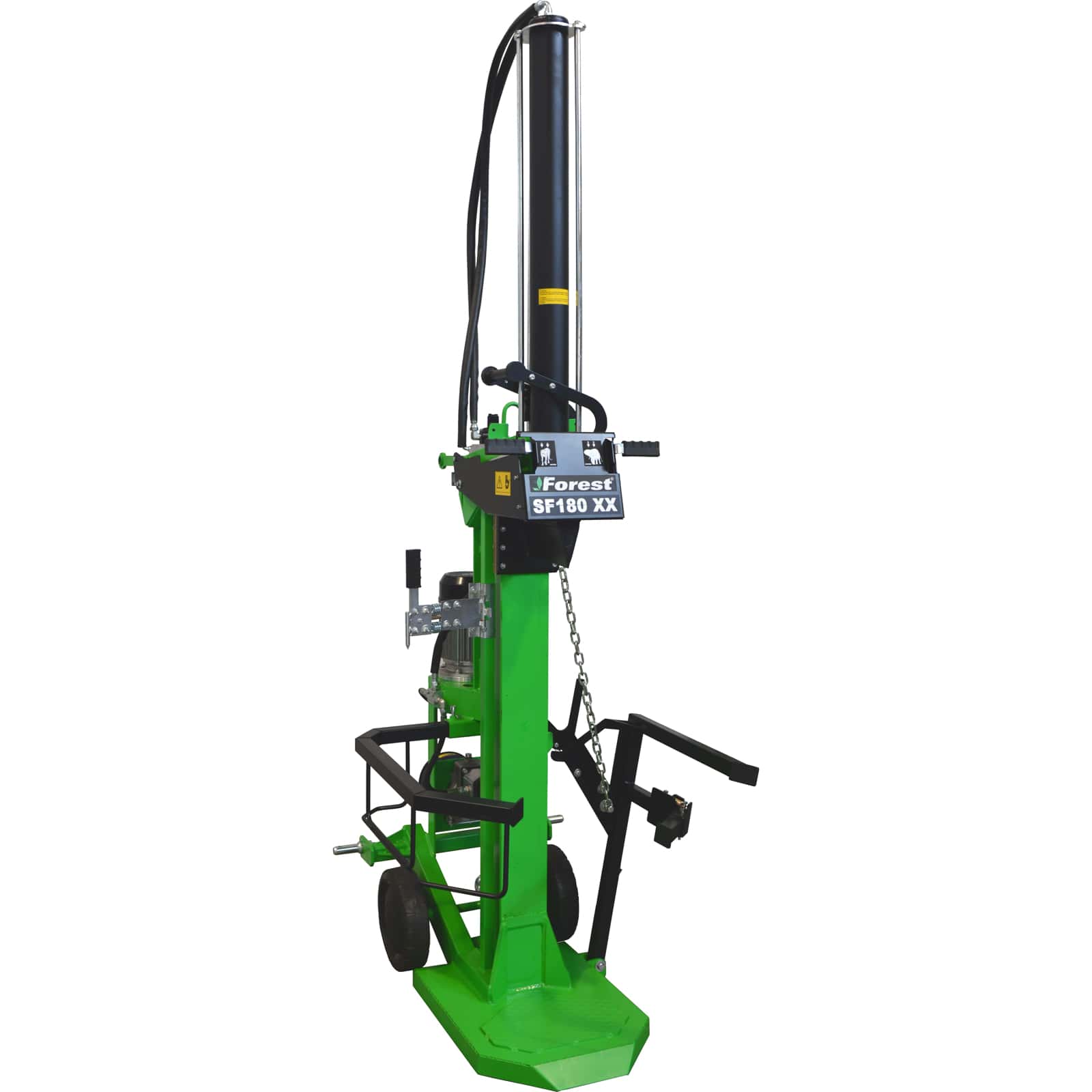

SF180 XX

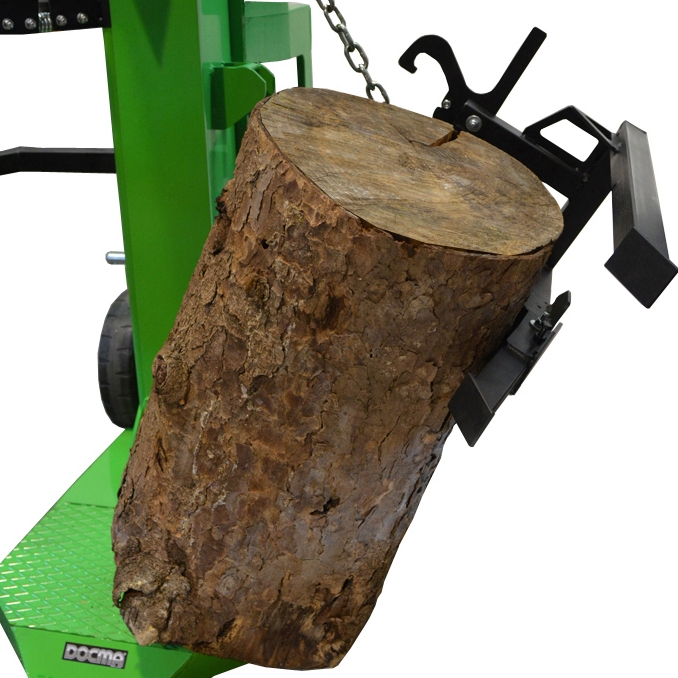

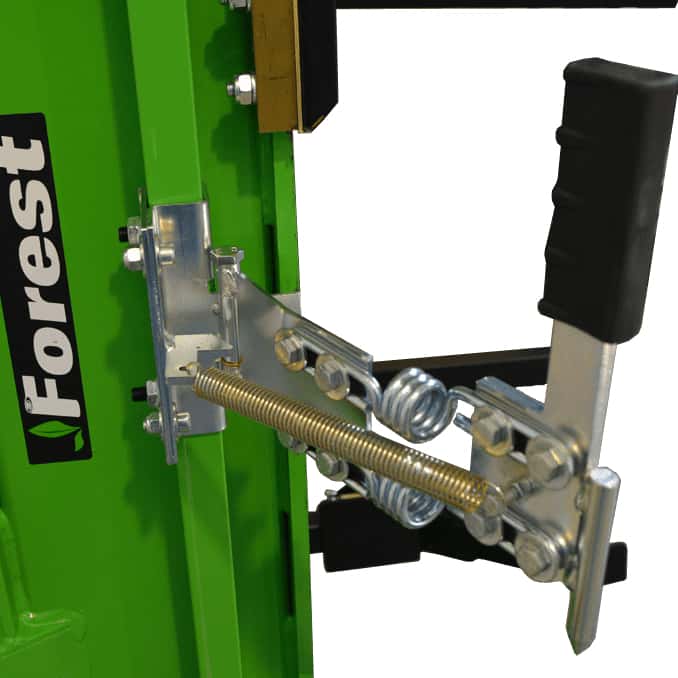

The Forest SF180 XX log-cutter is the top of range. Power and wide space for the trunks make it a machine rich in accessories: the system locks the trunk, the arm raises the trunk and the patented system locks and unlocks the cylinder quickly and easily. Its massive structure and top quality components ensure the durability of the product over time. EN609-1-2017.

Main features of SF180 XX (vertical):
• Cylinder stroke: 1000 mm;
• Cutting height: 1210 mm;
• Quantity of oil: 21 lt;
• Column stroke: adjustable;
• Weight: 300 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: Log-splitters, Forest

Description

Description

CODE	VERSION	TECHNICAL DATA	TONS	MEASURES

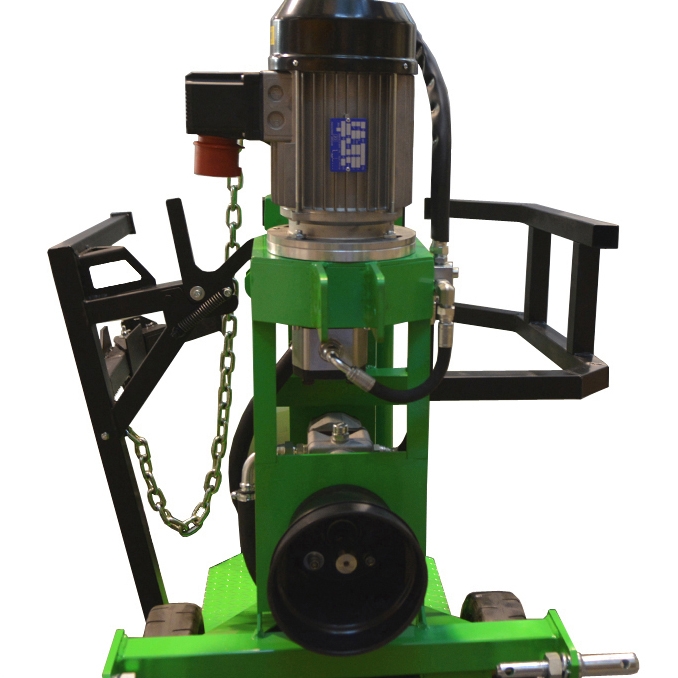

940038	SF180 RAPID 220 XX	EL. HP3 (2,2 kW) – 220 V – DP – 3P	16,00	110x95x265 cm
940039	SF180 380 XX	EL. HP5,5 (4,1 kW)– 380 V – PS – 3P	18,00	110x95x265 cm

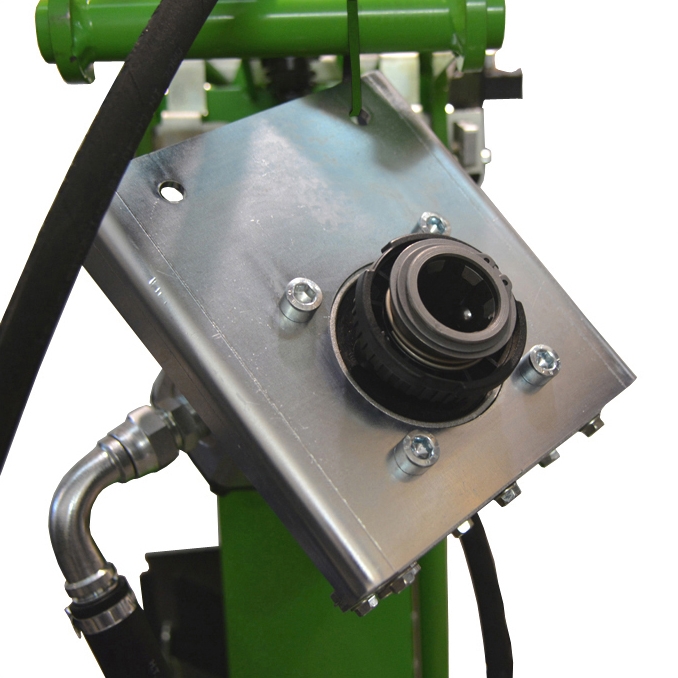

940040	SF180 PTO F XX	PTO FM – 3P – PS	18,00	110x95x265 cm
940041	SF180 PTO XX	PTO MS – 3P – PS	18,00	110x95x265 cm
940042	SF180 RAPID 220+PTO XX	EL. HP3 – 220 V – DP+PTO MS – 3P	16,00-18,00	110x95x265 cm
940043	SF180 380+PTO XX	EL. HP5,5– 380 V – PS+PTO MS – 3P	18,00	110x95x265 cm
940047	SF180 RAPID BENZ RATO XX	SC. RATO HP9 – 310 cc – DP	18,00	110x95x265 cm
940045	SF180 ST XX	HYDRAULIC TUBES 1,5 m	18,00 *	110x95x265 cm

LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE CONNECTION, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY

* MAXIMUM REACHABLE PRESSURE
