SF75 XX

SF75 XX

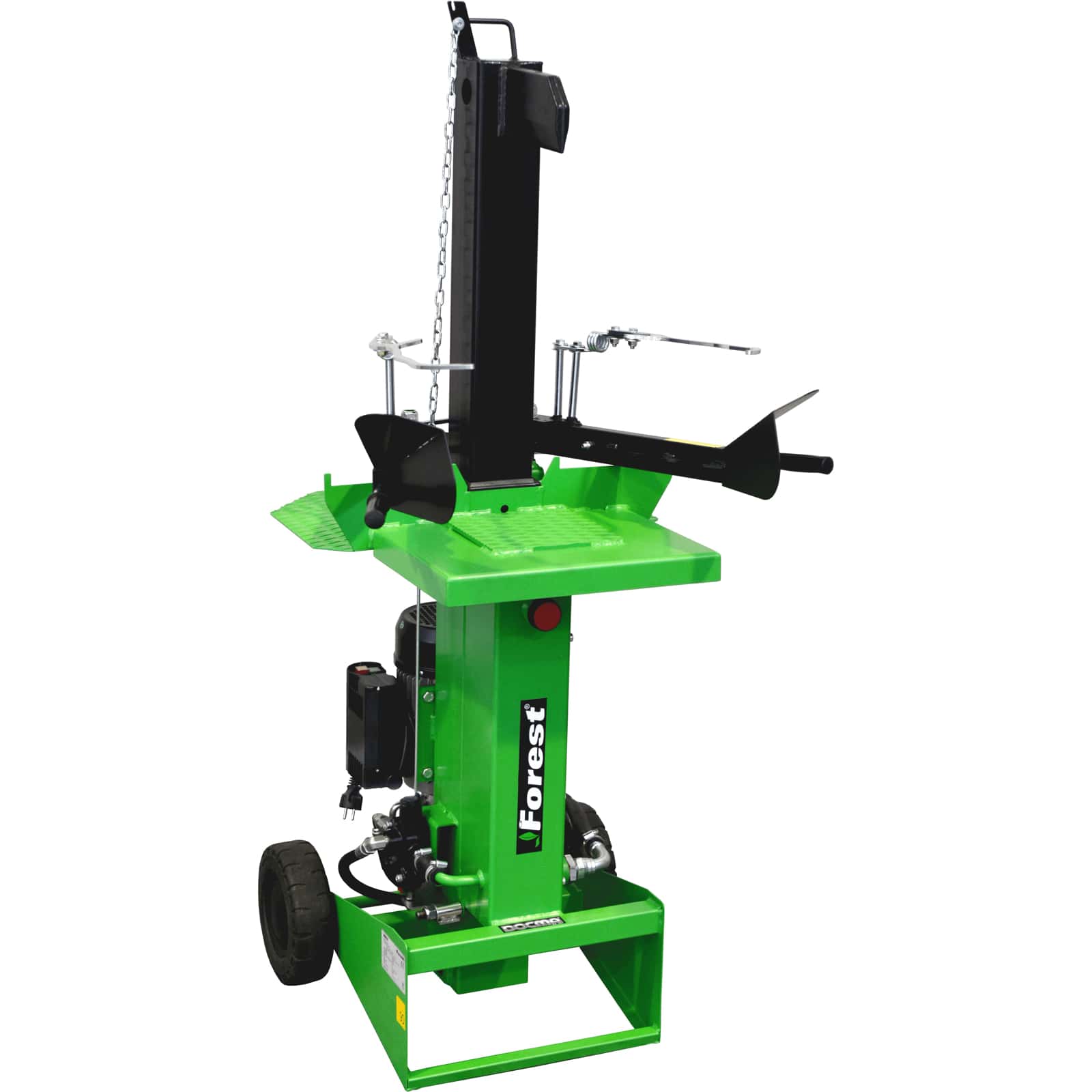

The Forest SF75 XX log-cutter model is the basis of quality with which the family with non-professional needs can split every year the wood needed for its personal use. The machine is completed by the patented system to lock the trunk comfortably and safely. EN609-1-2017.

Main features of SF75 XX (vertical):
• Cylinder stroke: 500 mm;
• Cutting height: 545 mm;
• Quantity of oil: 7 lt;
• Column stroke: adjustable;
• Weight: 102 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: ,

Description

CODE
 VERSION
 TECHNICAL DATA
 TONS
 MEASURES
910060 SF75 220 XX EL. HP3 (2,2 kW) – 220 V – PS 7,00 60x56x110 cm
910061 SF75 380 XX EL. HP3 (2,2 kW) – 380 V – PS 7,50 60x56x110 cm
910062 SF75 RAPID 220 XX EL. HP3 (2,2 kW) – 220 V – PS 8,00 60x56x110 cm
910063 SF75 RAPID 380 XX EL. HP3 (2,2 kW) – 380 V – PS 8,00 60x56x110 cm



LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE CONNECTION, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY
