SF80 XX

SF80 XX

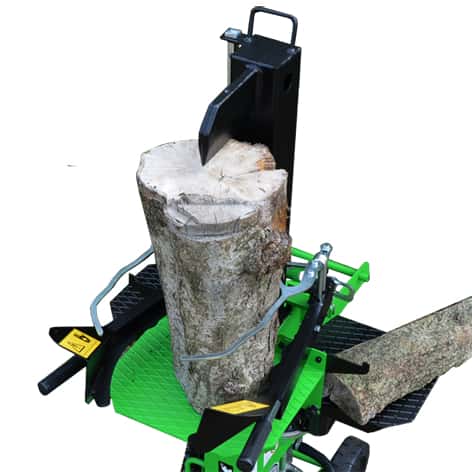

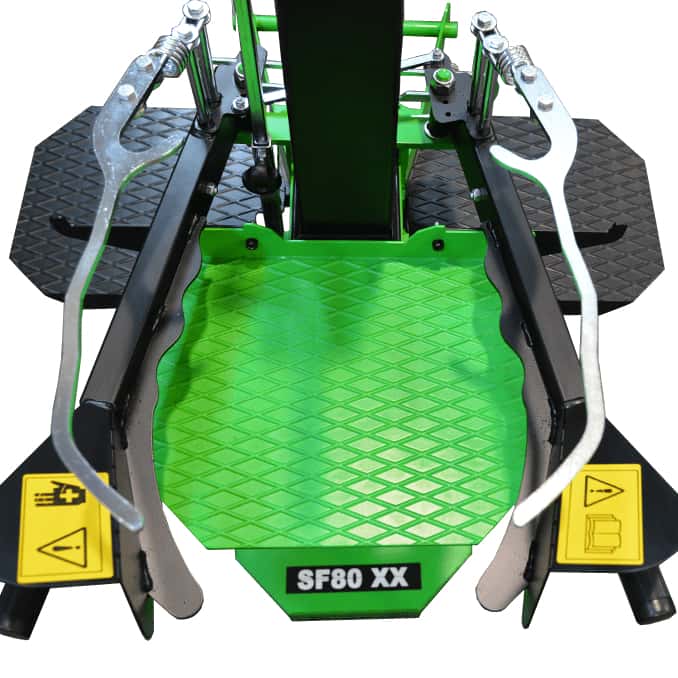

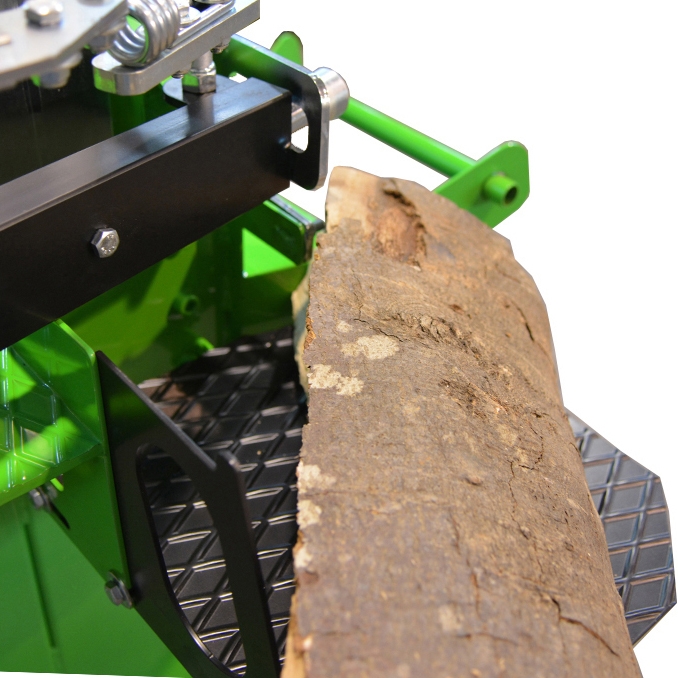

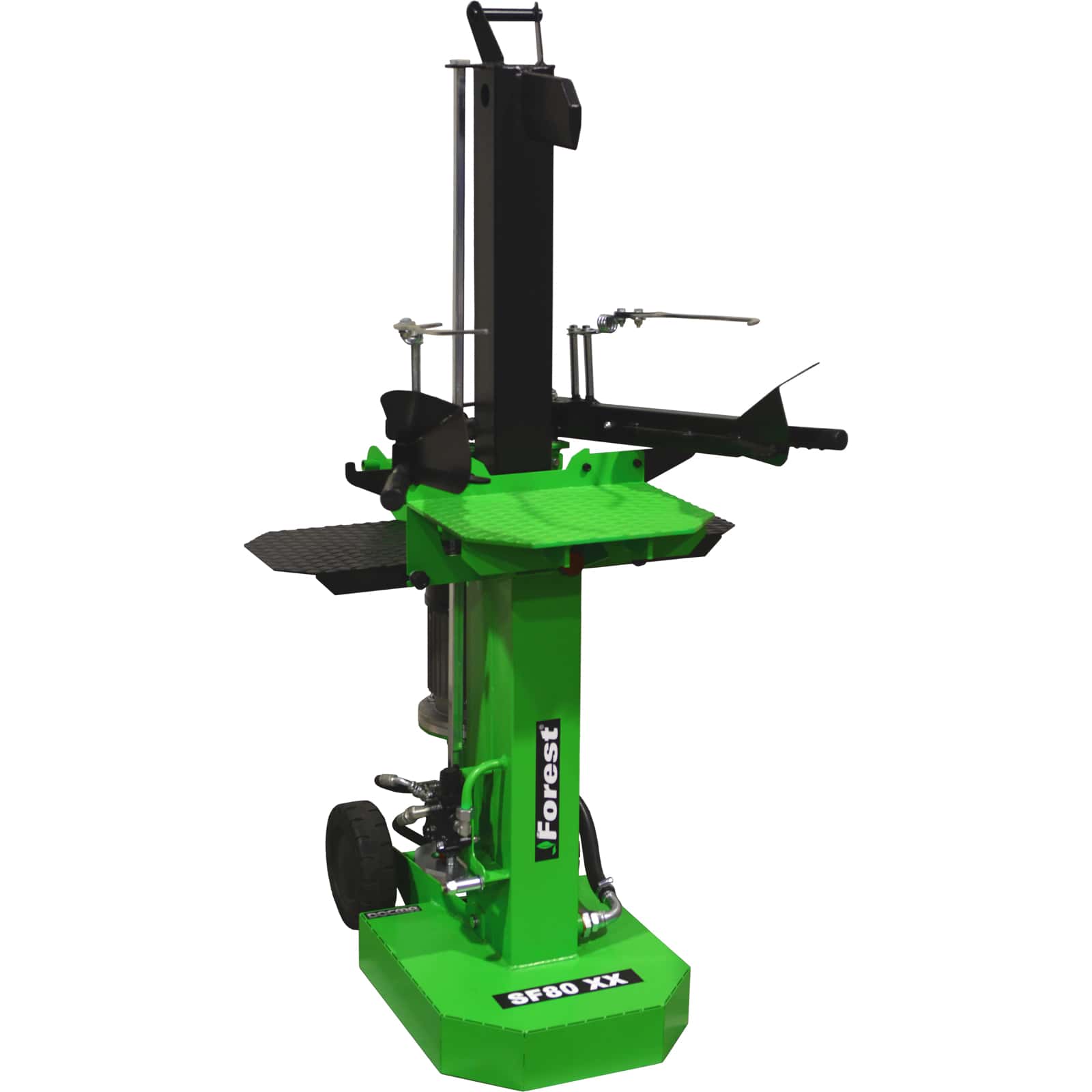

The Forest SF80 XX log-splitter model with a fixed support surface is available in various versions. It is the best choice for those who want more. The machine is completed by the patented system to lock the trunk comfortably and safely. EN609-1-2017.

Main features of SF80 XX (vertical):
• Cylinder stroke: 500 mm;
• Cutting height: 545 mm;
• Amount of oil: 8 lt;
• Column stroke: adjustable;
• Weight: 122 kg.

We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.

Categories: ,

Description

CODE
 VERSION
 TECHNICAL DATA
 TONS
 MEASURES
910066 SF80 220 XX EL. HP3 (2,2 kW) – 220 V – PS 7,00 72x64x112 cm
910067 SF80 380 XX EL. HP3 (2,2 kW) – 380 V – PS 7,50 72x64x112 cm
910068 SF80 380/4 XX EL. HP4 (3,0 kW) – 380 V – PS 8,00 72x64x112 cm
910069 SF80 RAPID 220 XX EL. HP3 (2,2 kW) – 220 V – PS 8,00 72x64x112 cm
910070 SF80 RAPID 380 XX EL. HP3 (2,2 kW) – 380 V – DS 8,00 72x64x112 cm
910071 SF80 RAPID 380/4 XX EL. HP4 (3,0 kW) – 380 V – DS 8,00 72x64x112 cm
910075 SF80 BENZ RATO XX SC. RATO HP6,7 – 212 cc PS 7,50 82x64x112 cm
910076 SF80 RAPID BENZ RATO XX SC. RATO HP6,7 – 212 cc DP 8,00 82x64x112 cm



LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE ATTACK, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY
