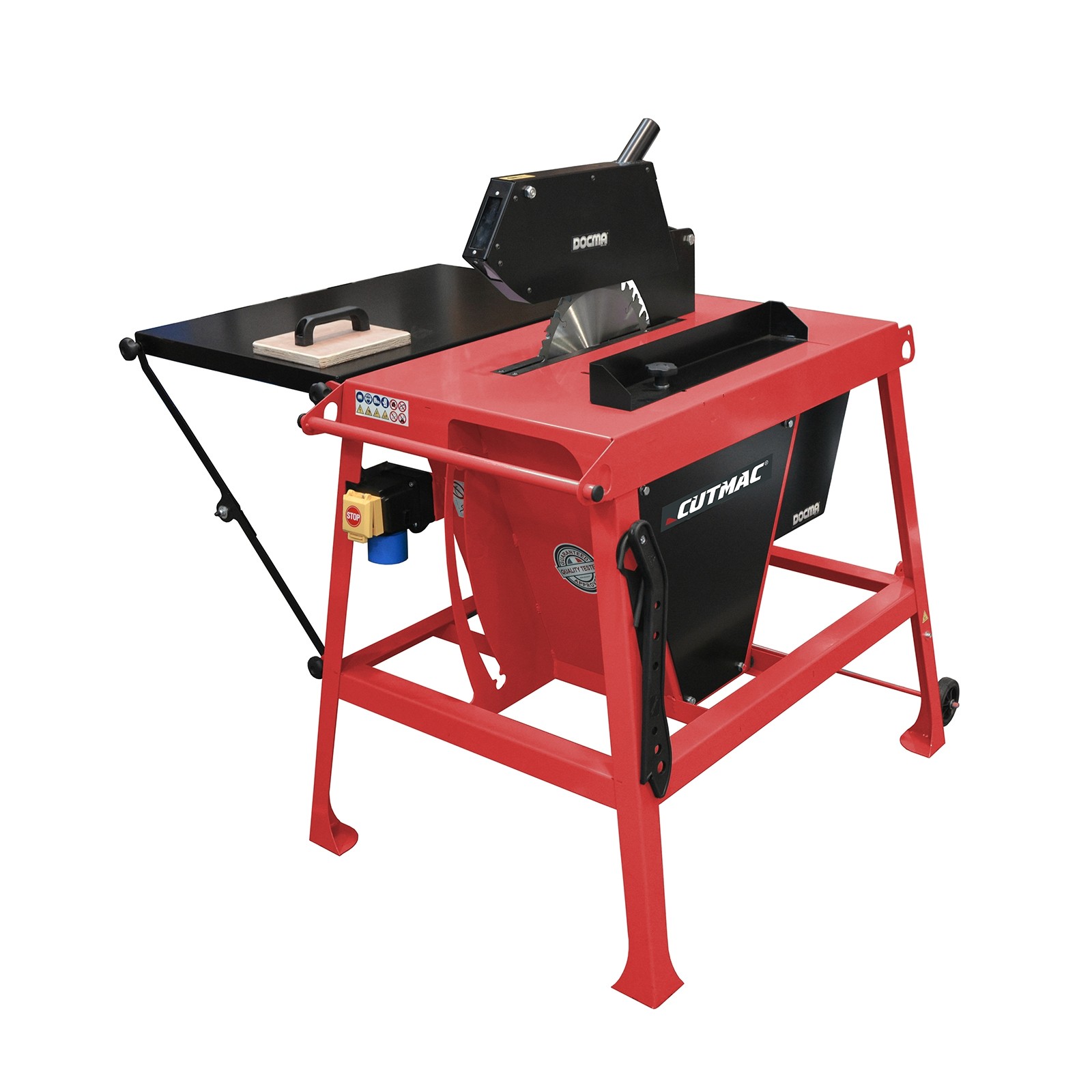

The Cutmac Rosso BSF315 saw bench is a professional bench with a 315 blade for agricultural and shipbuilding use. It has a cutting height of 120 mm, a high-performance motor, belt and wheel drive, and are standard for handling. CE certification, Annex IV.
Main features of the BSF315 (belt drive):
• Cut opening: 120 mm;
• Blade dimensions: 315 mm;
• Transmission: 2 straps;
• Wheels: 2 x 100 mm;
• Weight: 88 kg.
We take care of our customers, if you have any doubts or simply want to have more information about this product, please feel free to contact us.
| CODE |
VERSION |
TECHNICAL DATA |
MEASURES |
|---|---|---|---|
| 990021 | BSF315 220 | EL. HP3 (2,2 kW) – 220 V – WIDIA 315 mm | 77x109x107 cm |
| 990022 | BSF315 380 | EL. HP3 (2,2 kW) – 380 V – WIDIA 315 mm | 77x109x107 cm |
LEGEND: PS = SINGLE PUMP, DP = DOUBLE PUMP, EL = ELECTRIC MOTOR, SC = INTERNAL COMBUSTION ENGINE, PTO FM = PTO FEMALE CONNECTION, PTO MS = PTO MALE ATTACK, 3P = 3-POINT CONNECTION, ST = HYDRAULIC PIPES ONLY
